#Auto-locking mechanism PurePhone screen can be locked automatically due to user inactivity.
The Auto-locking mechanism is controlled by 'gs_auto_lock_time' parameter settings stored in database. Initial value for 'gs_auto_lock_time' (units for value is ms) can be changed in image/user/db/settings_v2_002.sql. Values lower than 1000 (<1s) are treated as 0 and thus disable auto-locking. Auto lock action is performed only if following conditions are met:

• tethering is off
• focused application does not prevent auto-locking

#SIM PIN flow

The PIN/PUK-related flow between SIM card and PurePhone User is directed by three main entities:

1. Service Cellular that is responsible for handling modem interactions in this context
2. ApplicationsManager that is responsible for ApplicationDesktop management and reliable messaging in the Service->Application direction in this context.
3. ApplicationDesktop that is responsible for PurePhone<->User interactions in this context

Following document focus mainly on (above listed) entities interactions and flow. Occasionally minimal interaction with other entities (such as User or modem) is outlined.

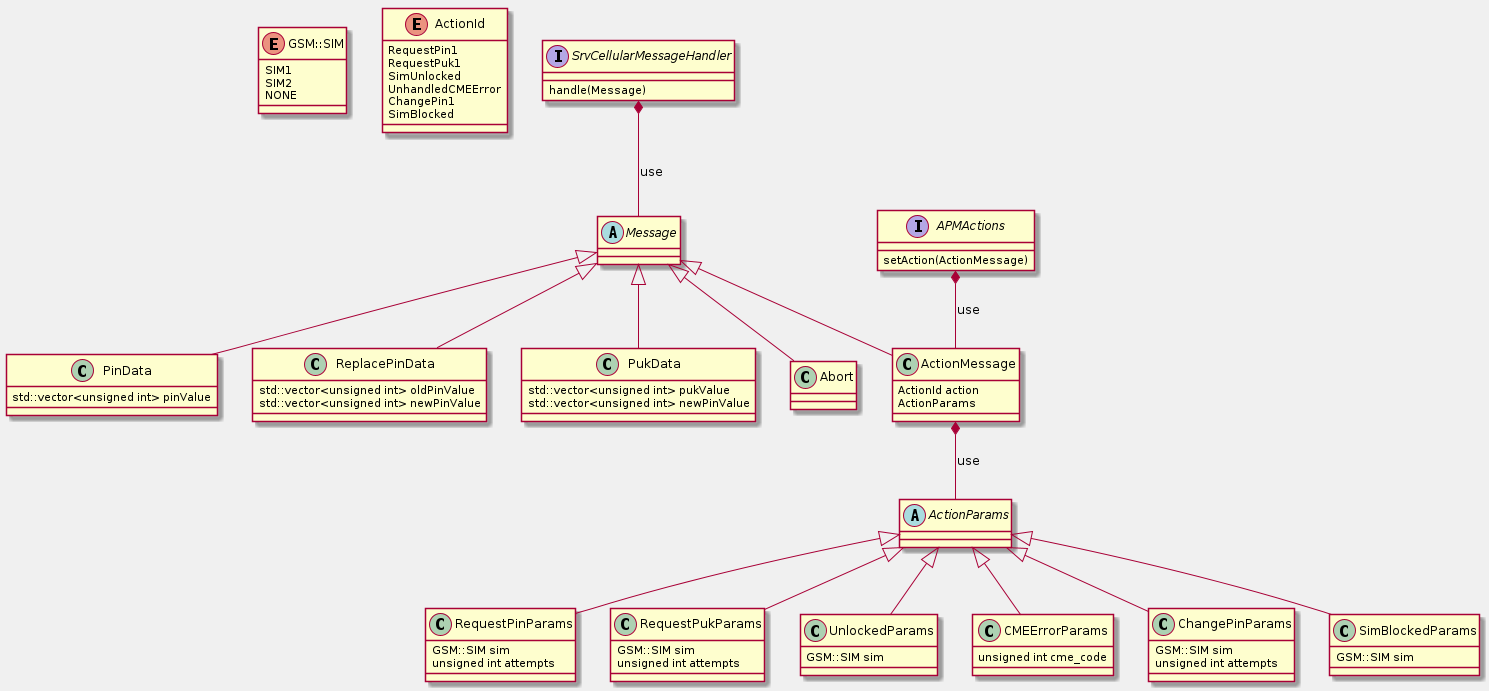

#Functional Decomposition

Basic interactions can be captured by following interfaces:

1. Service Cellular realizes
   • SrvCellularMessageHandler
2. ApplicationsManager realizes
   • APMActions
3. ApplicationDesktop realizes
   • AppDesktopActionHandler

#General flow overview

Each flow in this context consists of single action originating in ServiceCellular send with ApplicationsManager being middle-party that is responsible for appropriate action setup and optional feedback message sent directly from ApplicationDesktop to ServiceCellular via sys::Bus service.

#PIN flow

#PIN required basic flow:

#PIN flow with multiple failures leading to PUK

#PUK flow

#PUK required basic flow:

#PUK flow with multiple failures leading to PUK

#Unhandled CME Errors

#Other flow cases to further analysis

#Flow with user abort

#Flow with hot-swap

#Flow with potential race
